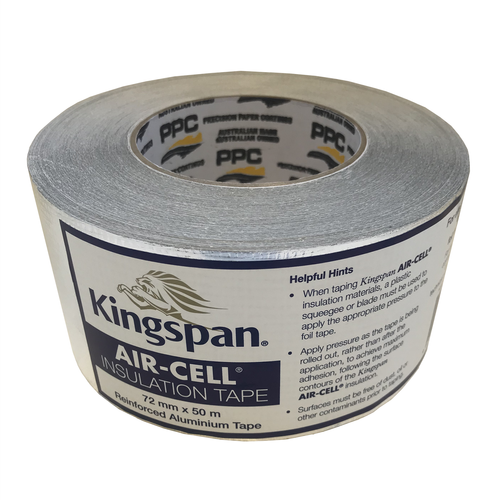

Kingspan 72mm x 50m Insulation Tape

Kingspan Insulation Tape Overview

Kingspan Insulation Tape is a premium reinforced aluminum foil tape designed to create a reliable vapor seal join for aluminum-faced insulation products. This high-performance tape is widely used in insulation and air conditioning industries due to its exceptional pressure-sensitive adhesion, making it an essential component for achieving tight and durable seals. With its unique combination of strength, flexibility, and conformability, Kingspan Insulation Tape ensures superior performance in both commercial and residential applications.

Key Features of Kingspan Insulation Tape

• Versatile Application: Suitable for roof, wall, and floor insulation joins.
• Reinforced Design: Provides enhanced durability and reliability.
• Effective Vapor Sealing: Ensures tight and secure insulation connections.
• High Adhesion: Pressure-sensitive for robust bonding.
• Available Options: Comes in multiple widths for various applications, including residential and commercial use.

Application Instructions

1. Ensure the insulation product is installed tightly, without sagging or slack.
2. Use a reinforced foil insulation tape of appropriate width:
   • 48 mm wide for residential buildings.
   • 72 mm wide for commercial and retrofit buildings.
3. Clean the surface thoroughly, removing contaminants like dust, oil, or silicone. Use mineral turpentine if needed, and allow the surface to dry completely.
4. Center the tape over the join, ensuring equal coverage on both sides.
5. Apply adequate pressure using a plastic squeegee or blade for maximum adhesion.
6. Follow the contours of the substrate, allowing the tape to conform to surface irregularities.

Dimensions

Guides and Certifications

• General Kingspan AIR-CELL Documents

  • Kingspan AIR-CELL Product Warranty

Kingspan Insulation Tape enhances the performance of your insulation system, ensuring reliable vapor sealing, improved durability, and superior energy efficiency in a wide range of applications.
